RTK Survey Equipment in general

RTK (Real-Time Kinematic) uses GNSS carrier-phase measurements plus real-time corrections (typically RTCM messages) to resolve integer ambiguities and reach centimeter-level relative positioning which is far better than phone GPS (meters) or basic sub-meter receivers. That's why modern rtk survey equipment shows up on construction stakeout, GIS/asset mapping, and drone/GCP crews.

Still, anyone who's chased a "perfect" RTK FIX knows the nasty surprise: you can be fixed and still be wrong. If the datum, projection, geoid model (orthometric vs ellipsoidal height), or localization/site calibration is off, your points can land in the wrong place on the local grid.

By the end, you'll be able to choose a rover-only workflow vs base+rover, decide on a corrections plan (radio or NTRIP), and use a simple readiness checklist to avoid no-fix surprises and rework. Let's start with the rtk survey equipment meaning in surveying and what 'RTK FIX' really means for your work.

RTK Survey Equipment Meaning Explained

Here's the definition you can quote when someone asks what is rtk survey equipment:

"RTK survey equipment is GNSS RTK survey equipment (receiver(s) plus surveying accessories) that uses real-time correction data to deliver centimeter-level positioning for mapping, stakeout, and control—when the coordinate system is set correctly."

This is the key part many buyers miss: RTK isn't "better GPS." It's a positioning method that depends on carrier-phase observations and corrections to remove common errors (satellite clock/orbit errors and atmospheric delay) and then resolve the integer ambiguities.

Conceptually, the GPS L1 carrier wavelength is about 19 cm; RTK works by resolving whole-number cycles so you can compute positions at the centimeter level. In practice, you'll see solution states change as conditions improve: Autonomous (no corrections) → DGPS (code-based) → FLOAT (partial ambiguity resolution) → FIX (integer ambiguities resolved).

A construction crew staking a grid line needs repeatable cm-level positions across the day—RTK is designed for that, while phone GPS drifts by meters.

One more reality check on rtk survey equipment meaning in surveying: RTK is usually excellent at relative precision (point-to-point consistency). Absolute accuracy depends on the reference frame, base station coordinates or network model, and how you configured datum, projection, and geoid versus ellipsoidal height. If you're doing boundary/cadastral, control, or tight stakeout, you'll also run into localization/site calibration to match the project grid.

RTK FIX, RTK FLOAT, and DGPS

• RTK FIX: "A FIX solution means the receiver has resolved integer carrier-phase ambiguities and is using valid corrections; it's the minimum for high-confidence stakeout and control checks."
• RTK FLOAT: "FLOAT means ambiguities aren't fully resolved—positions may look stable but can drift, especially vertically."
• DGPS: "DGPS typically uses code corrections; it improves from meters to decimeter-ish ranges but isn't RTK-grade."

Network RTK is the rover-only option where corrections come from a reference station network over the internet. If you plan to run rover-only Network RTK, confirm correction availability first—RTKdata.com provides access to 20,000+ reference stations across 140+ countries, helping you validate coverage before committing to a workflow.

How RTK Corrections Actually Work

RTK Corrections are the part of GNSS rtk survey equipment that decides whether you're productive or stuck staring at RTK FLOAT. The clean mental model is this:

"A reference station (base) measures GNSS errors at a known location and sends corrections as RTCM messages; the rover applies them to produce an RTK solution."

The rover typically consumes RTCM (often RTCM3 MSM) streams it's not ingesting a base's "raw carrier-phase" directly in the way people sometimes describe. Those RTCM messages reach the rover via either (1) radio like UHF/LoRa, or (2) cellular internet using NTRIP.

If you're asking what corrections do i need for rtk surveying equipment, the practical answer is: RTCM3 corrections with the right message set for your receiver/constellations, delivered with low latency and a stable link.

Base + rover (local RTK): This wins on remote sites, repeated projects, or anywhere cellular is unreliable. Baseline length matters: as the base-to-rover distance increases, FIX reliability and vertical performance generally degrade. Keep the base close when you can, and give both antennas a clean sky view.

Example (remote site): "On a quarry with no data coverage, a base on a stable tripod and a rover with a UHF radio can keep crews working all day—if the base point and antenna height are recorded consistently."

How to set up rtk base and rover:

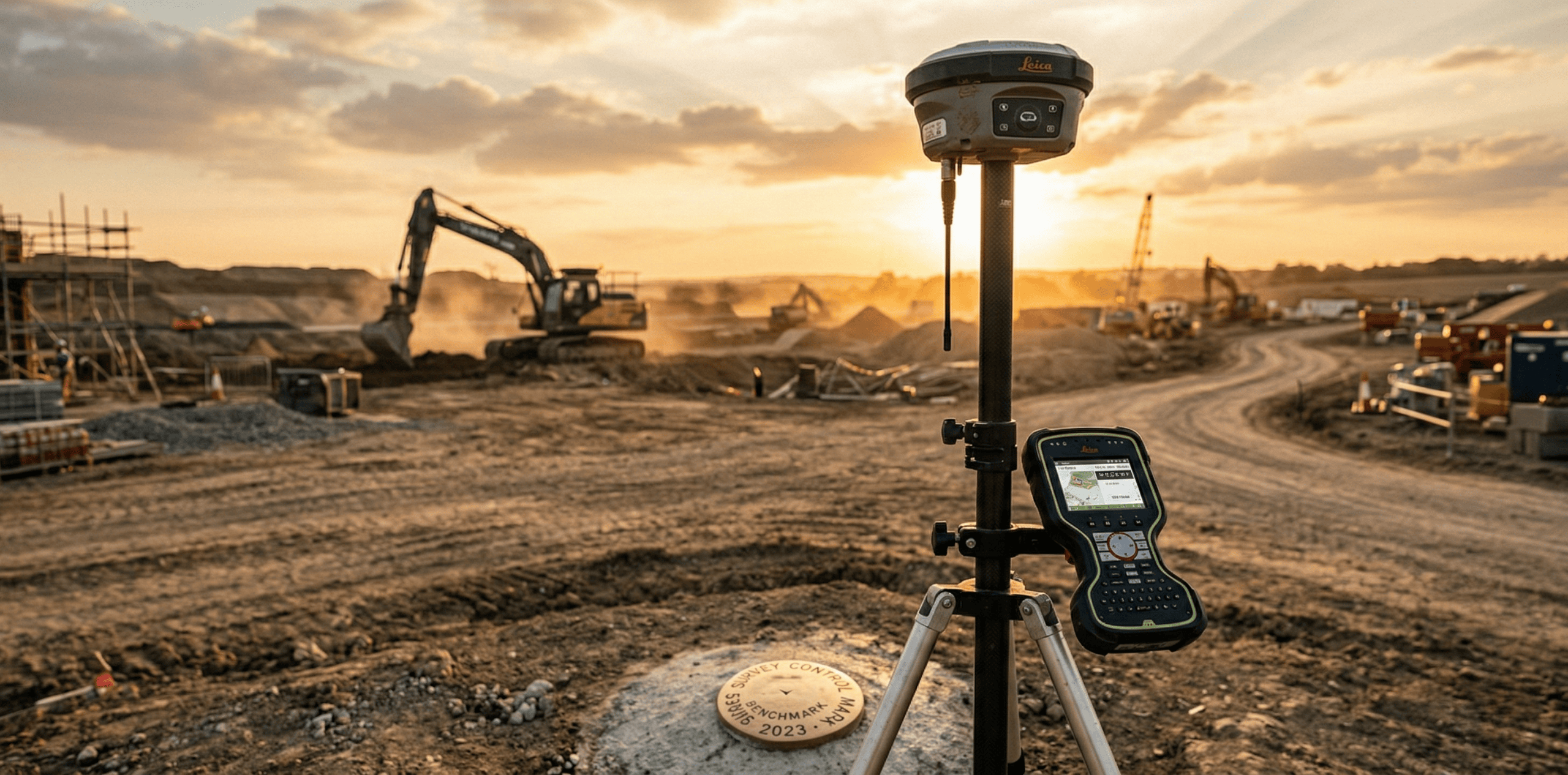

1. Set the base: Place on a stable tripod/tribrach over a known mark (or carefully averaged position) and enter the correct antenna type and height.
2. Broadcast RTCM: Configure radio (frequency, power, air rate) and set RTCM output (RTCM3 where possible).
3. Configure the rover: Match radio settings or NTRIP login, verify it's receiving RTCM, then confirm FIX with a control check.
4. Record metadata: Save base coordinates, antenna heights (vertical vs slant), mountpoint/radio settings, and job CRS (datum/projection/geoid).

Radio vs NTRIP choice

• Radio: Independence and simple operation in no-internet zones, but you must handle legal/compatible frequencies and line-of-sight limits (UHF/LoRa radio behavior is terrain-dependent).
• NTRIP: Fast deployment and no physical base, but it depends on SIM/LTE modem performance, data coverage, and network uptime.
• Bluetooth (common confusion): Bluetooth usually links rover to the data collector; corrections still arrive via radio or an internet modem.

If you're comparing network rtk vs base station which is better, the honest answer is "it depends on uptime requirements and connectivity." In buying terms: rtk rover vs base and rover set which to buy comes down to whether you can trust NTRIP everywhere you work, every day.

RTK Survey Equipment Parts List

A realistic rtk survey equipment parts list (and the reason rtk gps survey equipment sometimes "doesn't work") includes more than the receiver.

• Rover GNSS receiver: Multi-constellation, multi-band unit that outputs NMEA and can consume RTCM3 corrections.
• Base receiver (if used): A GNSS receiver set to a known coordinate (or carefully averaged) that generates RTCM corrections.
• Antenna: Integrated antennas are common; external antennas can improve base stability and reduce multipath. For high-precision workflows, antenna calibration (NGS/ANTEX-type models) matters more than most teams expect.
• Controller / data collector: Phone/tablet/rugged controller running a survey/GIS app; it must handle coordinate systems and exports.
• Correction link: NTRIP uses SIM/LTE modem (in rover or controller hotspot). Local RTK uses UHF/LoRa radios with matched settings.

Accessories are where accuracy gets won or lost:

• Pole + bipod: Stability equals repeatability; use a bipod for longer occupations and keep the pole vertical for QA.
• Tripod + tribrach (base): A tribrach helps you center and level accurately, which reduces blunders.
• Adapters: 5/8" compatibility and solid quick-release mounts matter—wobble becomes error.
• Antenna height measurement: Vertical height is mark-to-ARP vertically; slant height is measured along the pole/strap to the ARP. The setting must match the method. A 20 mm height error becomes a 20 mm vertical error (and can affect derived surfaces and stakeout tolerances).

Field survival items keep crews moving:

• Batteries: Bring spares; cold and long days cut runtime. Downtime cost is real money.
• Cables/ports: USB-C, RS-232, and charger leads fail at the worst time—carry spares. Firmware updates often require a stable cable connection.
• Logging media: Internal storage/microSD enables raw logging for PPK fallback (RINEX or vendor raw).

Software is part of the measurement chain:

• Field apps: GIS apps like SW Maps, QField, and ArcGIS Field Maps/Survey123, plus survey workflows (e.g., FieldGenius), provided they support NTRIP and your receiver connection.
• Exports: CSV for points, DXF for CAD stakeout/topo deliverables, SHP for GIS layers.
• CRS support: The app must handle datum/projection and geoid models so your heights are orthometric (when needed) and consistent.

Rover-only vs full kit

• Rover-only Network RTK: rover + controller + SIM/data + NTRIP credentials + pole/bipod.
• Base+rover: add base receiver, tripod/tribrach, radio(s), and a repeatable base point procedure.

This section is the heart of rtk survey equipment parts: if you don't budget for the "boring" hardware, you'll pay for it in repeat visits.

RTK Survey Equipment Accuracy and Price

If you're asking what accuracy can rtk survey equipment achieve, here are realistic field numbers under good sky view and solid corrections:

• Horizontal: ~1–2 cm typical.
• Vertical: often ~2–4 cm typical, and it degrades faster with multipath and long baselines.

Performance is driven by multipath (buildings/metal), canopy, baseline length, correction age/latency, antenna placement, PDOP/elevation mask settings, and operator practice (occupation time and repeat shots).

Example (rtk survey equipment for construction stakeout): "IMU tilt helps reach corners near walls, but multipath can make the solution look 'fixed' yet wrong—verify by checking into nearby control and repeating observations."

What drives rtk survey equipment price: Multi-band/multi-constellation capability, integrated modem/radio, IMU/tilt compensation, rugged IP/temperature rating, logging/PPK readiness, and the software/support package.

The bigger cost story is ongoing: CORS/NTRIP subscription, SIM/data, software subscriptions, replacements (poles, tribrachs, batteries), training, and the productivity hit when crews can't get FIX.

Hidden-cost checklist:

• Tripod/tribrach: Don't base on a shaky setup.
• Pole/bipod quality: A flexible pole is an accuracy tax.
• Cases/mounts/adapters: Prevent damage and wobble.
• Spare batteries: One dead pack can stop a crew.

Buying reality: The rtk survey equipment price often varies more than buyers expect because of import duty/VAT, shipping, exchange rates, local stock of accessories, and warranty/support logistics. For planning and budgeting, you'll hear people search rtk survey equipment price 2026—the important part is total cost of ownership, not the sticker price.

Corrections strategy: If you have reliable cellular where you work, rover-only Network RTK can be the fastest deployment. If you work remote or in patchy coverage, plan base+rover radio or log raw for PPK fallback. In every case, consistent corrections are what keep crews productive—checking station availability and coverage via RTKdata.com helps you decide whether rover-only NTRIP is realistic or if you should invest in base+rover for independence.

Buyer guidance: The best rtk survey equipment for small surveying firm is usually the kit your team can standardize and support: reliable RTCM3 MSM/NTRIP performance, raw logging for PPK, and accessories you won't replace every quarter. If you're doing mixed work, pick receivers and software that handle both GIS outputs (SHP/CSV) and survey deliverables (DXF) with correct coordinate systems.

IMU/tilt compensation guidance: "An IMU estimates pole tilt so the receiver can compute the antenna position without perfectly leveling the pole." It's worth it for tight corners, points under obstructions, and fast topo. Disable it for control points, localization/site calibration, and acceptance tests—use a vertical pole for QA/QC. This is the practical answer behind rtk equipment tilt compensation imu worth it.

Vendor questions

• RTCM3 MSM: Which MSM messages are supported and recommended?
• Constellations/bands: GPS/GLONASS/Galileo/BeiDou, and which frequencies?
• SIM/LTE modem: Which LTE bands are supported for local carriers?
• Radio legality: Are UHF frequencies/power levels legal and configurable?
• Included accessories: Pole, bipod, tribrach, chargers, mounts—what's actually in the box?
• Warranty/support: Local turnaround time and parts availability?
• Firmware process: How do updates happen in the field?
• PPK readiness: Can it log raw data for RINEX/vendor processing?

Conclusion

RTK survey equipment succeeds or fails as a system: GNSS receiver(s), correction delivery, correct datum/projection/geoid (plus localization/site calibration when required), and disciplined field practice. The crews that get consistent FIX results also do the basics—stable setups, repeatable antenna height measurement, control checks, and a plan for what happens when latency spikes or coverage drops.

For buying decisions, rover-only Network RTK is the fastest to deploy and easiest to scale across crews. Base+rover is what you choose when independence matters more than convenience. IMU tilt compensation boosts productivity around obstacles, but verify control with a vertical pole and disable tilt for acceptance testing.

Before your next purchase or deployment, validate your corrections plan—RTKdata.com offers access to 20,000+ RTK reference stations in 140+ countries to help reduce 'no-fix' surprises on site.
