RTK Real Time Kinematic: How Centimeter (cm) Accuracy Works for GPS Surveying

What is RTK

Real-Time Kinematic (RTK) is a satellite positioning technique that enhances the precision of GNSS (GPS, GLONASS, Galileo, BeiDou) signals to provide, in real-time, centimeter-level accuracy, typically achieving 1–3 cm horizontally and 3–4 cm vertically. It uses a stationary base station to send correction data to a mobile rover, compensating for atmospheric delays and orbital errors. Normal GPS/GNSS positions are often 5–10 meters off because they rely mostly on code-phase measurements and uncorrected atmospheric and satellite errors.

Key Aspects of RTK

RTK Meaning

Normal GPS/GNSS positions are often 5–10 meters off because they rely mostly on code-phase measurements and uncorrected atmospheric and satellite errors. RTK positioning fixes this by using carrier-phase measurements plus real-time corrections from a nearby reference station or network. RTK stands for (Real-Time Kinematic) is a relative positioning technique where a rover receiver uses carrier-phase GNSS signals and correction data from reference station(s) at known coordinates to compute centimeter-level positions in real time. People say "rtk real time kinematic gps," but modern RTK is multi-constellation GNSS (GPS, GLONASS, Galileo, BeiDou) and often multi-frequency (L1/L2/L5), which improves time-to-fix and fix stability. Anyone who's done layout or mapping in the real world knows the pain points: staking a curb line—float solutions cause offsets that show up as rework; drone mapping—RTK reduces ground control needs, but only if corrections are reliable; robotics—latency and fix drops can cause path-tracking errors. Before you choose a base, a network, or an NTRIP subscription, here's the practical 60-second model of how RTK works in the field.

RTK Technology

Most buying mistakes happen because teams think RTK is a "feature you turn on." In practice, RTK performance comes from a system: receiver capability, correction delivery, and the environment you're working in.

RTK Real Time Kinematic explained in 60 seconds

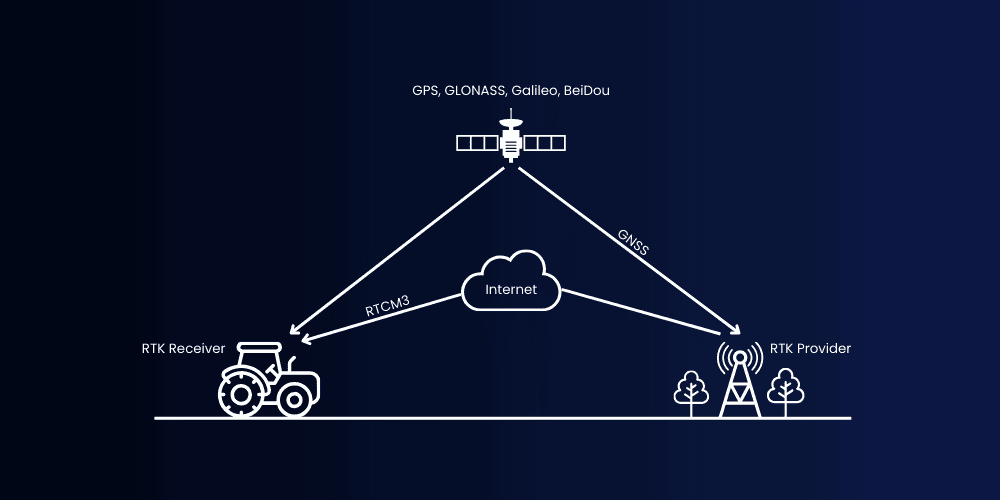

An RTK system is (1) a reference station at a known coordinate, (2) a rover that measures satellites, and (3) a correction link that delivers near-real-time observation data so the rover can resolve carrier-phase ambiguities.

1. Measure: Base/network measures the same satellites as the rover.
2. Compute: Base/network computes correction information (observation-based, not just a single offset).
3. Stream: Corrections are sent as RTCM 3 over NTRIP (internet) or radio.
4. Resolve: Rover runs ambiguity resolution; solution status becomes Single → Float → Fix.
5. Work: In Fix, horizontal is typically centimeter-level in good conditions.

Example you'll recognize from the field: a survey rover connects to an NTRIP caster on a job site and reaches Fix in ~5–30 seconds in open sky. Why it matters: Fix depends on corrections + satellite geometry + environment, not just "having RTK hardware." If your sky view is bad, your correction age is high, or your baseline is too long, the receiver can't do magic.

Single RTK, RTK Float, RTK Fix in the real world

• Single RTK: autonomous GNSS (meters).
• RTK Float: carrier-phase used but ambiguities are not integers yet (often decimeter to sub-meter).
• RTK Fix: integer ambiguities resolved; best repeatability and cm-level relative accuracy.

Operationally, train crews to log two things: solution status and correction age. Don't stake critical points in Float, and don't accept a "Fix" that's paired with stale corrections or constant re-initialization. Also: don't claim "1 cm guaranteed", just say "cm-level in Fix under good conditions."

Fix depends on corrections, satellite geometry, and the environment—not just "having RTK hardware."

RTK GPS vs Standard GNSS At-Glance

• Accuracy: standard GNSS = meters; DGNSS = sub-meter; RTK = cm-level (Fix).
• Infrastructure: RTK needs a correction stream + an RTK-capable receiver (often multi-frequency, multi-constellation).
• Time behavior: RTK requires initialization; it can drop in tough environments (trees, cranes, urban canyon).

Quick workflow comparisons (this is the "which tool when" view):

• Standard GNSS: simple, but typically meter-level.
• DGNSS: code-based corrections; improves to sub-meter but doesn't solve carrier-phase integers.
• RTK: real-time carrier-phase with ambiguity fixing for cm-level relative results.
• PPK: post-processed kinematic; uses carrier-phase but computes after the mission.
• PPP: precise point positioning; uses precise orbits/clocks and converges more slowly, often without a local base.

That last point is key for planning: if you can't maintain a correction link (remote spraying, offshore, long UAV corridors), you may need a workflow that tolerates outages. Professional RTK services like RTKdata.com provide 20,000+ reference stations across 140+ countries, helping you find correction coverage near your job sites without guessing.

What RTK corrects (and what it can't)

RTK works because many GNSS errors are shared over short distances (the baseline):

• Satellite clock bias and orbit/ephemeris: similar for nearby receivers.
• Ionosphere and troposphere: delays are correlated over short distances, so differencing reduces them.

But some problems are local and won't disappear just because you're in Fix:

• Multipath: reflections near the antenna are local; a base station can't remove them for the rover.
• Poor geometry (high PDOP): fewer satellites or bad angles reduce solution quality even with corrections.

Symptom mapping you can trust: open sky + low multipath → fast Fix; under trees/urban canyon → frequent Float/Fix drops and longer initialization. That's also why rtk real time kinematic positioning accuracy in cm is realistic only when the environment lets the receiver keep clean phase tracking.

Why Multi-Band Helps Fix

Multi-frequency (L1/L2/L5) allows the receiver to model ionospheric delay better and improves ambiguity resolution speed. Multi-constellation increases satellite count and geometry, reducing PDOP and improving Fix reliability. There's a point of diminishing returns. After dual-band + multi-constellation, antenna quality (phase center stability), ground plane, mounting, and the local multipath environment often matter more than adding another constellation.

RTCM, NTRIP, Latency Setup

Once you've chosen your workflow, performance usually comes down to one thing: do you have clean satellite signals and a stable correction stream? This is where RTCM, NTRIP, latency, and mountpoint selection matter.

RTCM corrections in practice

RTCM is a standard message format for GNSS correction data; RTCM 3 (often written as rtcm3) is the modern version used for RTK. If you're evaluating rtcm corrections for rtk real time kinematic, you're really evaluating whether your rover can ingest the message set your correction source outputs.

• 1005/1006: reference station coordinates (base position messages).
• MSM 107x/108x/109x/112x: multi-signal observation messages for GPS/GLONASS/Galileo/BeiDou (MSM messages).
• 1230: GLONASS code-phase bias info that helps interoperability.

Most crews don't pick messages manually. They confirm rover and mountpoint compatibility, then watch bandwidth and correction age so the rover doesn't starve or lag.

NTRIP basics: caster, mountpoint, client

NTRIP is a protocol for streaming GNSS correction data over the internet. It's the most common answer to how to get rtk corrections via ntrip for survey, construction, ag, UAV, and robotics.

• NTRIP caster: the server that hosts streams.
• Mountpoint: a named correction stream you connect to.
• Client: your rover/controller software that logs in and receives RTCM.

1. Enter host/port and your username/password.
2. Select a mountpoint that matches your rover capabilities (constellations, MSM, etc.).
3. Confirm you're receiving RTCM at a steady rate and your correction age stays low.
4. Enable NMEA GGA output if your caster uses it for VRS positioning.

Common misconception: line-of-sight between base and rover is not needed with NTRIP; you only need cellular/internet plus good satellite sky view. Trees and buildings can wreck GNSS even if your LTE signal is perfect.

Transport options and latency impact

• Internet/cellular: usually easiest; watch correction age (seconds) and dropouts.
• UHF radio / LoRa: good where cellular is weak; requires radio setup and often line-of-sight for the radio link.
• L-band corrections: broadcast option for wider areas; useful when internet is unreliable (implementation depends on receiver/service).

RTK assumes corrections match the rover's measurement time. High latency or jitter increases time-to-fix and can cause Fix to drop during motion. Drone and robotics example: a drone moving at speed with 2–3 seconds of correction delay can see unstable heading/position; stable low-latency corrections improve path tracking. For rtk real time kinematic for drones mapping, this is the difference between clean camera event geotags and a dataset you end up "saving" with extra GCPs.

Picking The Right Mountpoint

If offered, start with a mountpoint that matches your receiver's constellations (GPS+Galileo+BeiDou, etc.) and uses MSM where possible. If you're near a specific station, a nearest-station stream can work well; if you move across a region, VRS may stay more consistent. If you're trying to figure out how to find the best rtk correction service provider by country, don't start with marketing claims—start with practical coverage: station proximity, density, redundancy, mountpoint types, and expected latency on your local cellular network. For implementation specifics and terminology, reference https://docs.rtkdata.com/.

Conclusion

RTK real time kinematic positioning achieves cm-level results by using carrier-phase measurements plus real-time corrections and resolving integer ambiguities (Fix). Your day-to-day performance depends on correction quality (latency/uptime), baseline distance, satellite geometry (PDOP), and local multipath. Absolute coordinates depend on correct base coordinates and the right coordinate datum/geoid; many "bad RTK" reports are configuration mismatches. Next step: find a correction source near your job sites and validate Fix stability—RTKdata.com makes it easy to identify available stations and RTK networks worldwide (20,000+ stations, 140+ countries), then you can use the checklists above to confirm performance in the field.
